Dingli smokeless biochar continuous carbonization machine is a new type machine with high-efficiency, energy-saving and environmental etc. characteristics. Biochar can be used as fuel or soil conditioner, and one set of equipment can meet both requirements.
The complete biochar making production line can be equipped with crusher + dryer + carbonization main drum + purification devices + crusher + mixer+ briquetting machine, etc., which can meet the production needs of different materials.

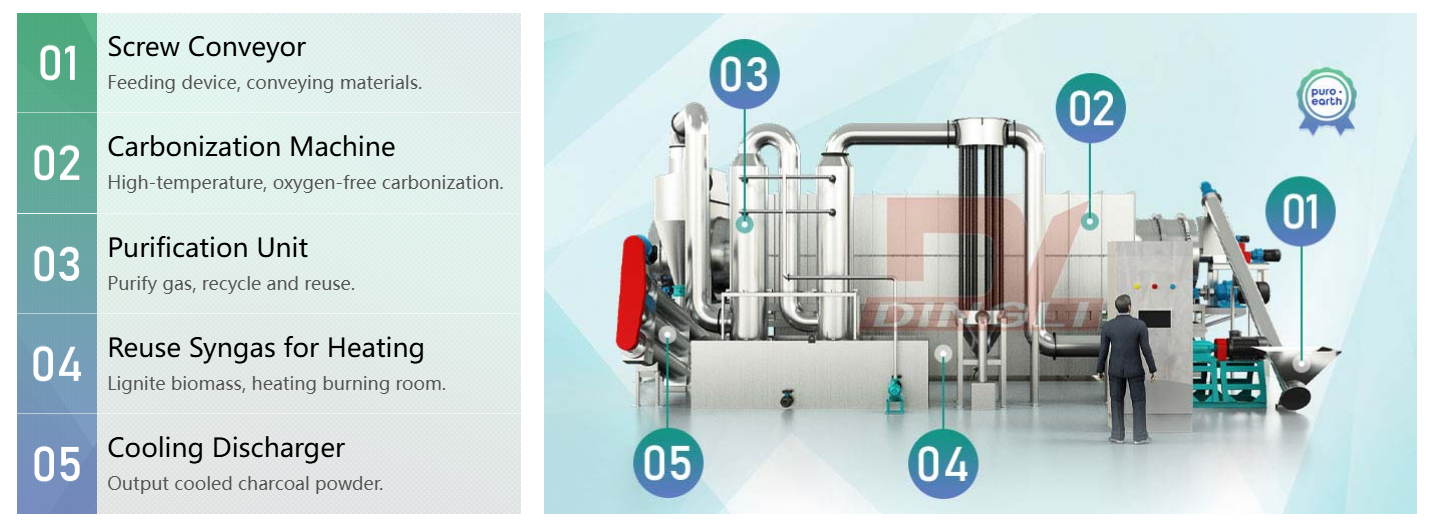

Dingli smokeless continuous biochar machine is composed of conveyor, main drum, dust removal, purification, burner, power distribution cabinet and other equipment. It is a newly developed continuous carbonization equipment integrating high efficiency, environmental protection and intelligence.
The whole production line can also be equipped with dryers, charcoal powder briquettes or ball briquetting machines, and briquette dryers. The generated carbon blocks can be packaged and sold directly
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| DLTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| DLTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| DLTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| DLTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| DLTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| DLTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| DLTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| DLTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| DLTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
